Multilayer Automobile PA Nylon Oil Tube Extrusion Machine
Automotive Fuel Tube Making Machine

PA multilayer composite pipe of automotive fuel system is internationally widely used in car fuel oil system which features a kind of portable, high performance and environmental protection line products.
PA automotive fuel tubes have different layer structure, like two layer, 3 layer and 5 layer with oxygen barrier. its outside diameter has 6 mm, 8 mm, 10 mm and other different specifications.

PA multilayer oxygen barrier pipe can effectively reduce the automobile emission pollution to the environment, and meet the higher environmental requirements. At the same time multilayer composite pipe possesses excellent resistance to penetration performance, can satisfy the EU-III standards.
.

Multilayer Pipe Structure:

1. Inner layer: PA 12
2. Inner adhesive layer
3. EVOH oxygen barrier layer
4. Outer adhesive layer
5. Outer layer: PA 12

TECHNICAL DATA

PA fuel tube sizes:

MULTILAYER AUTOMOBILE FUEL PIPE MACHINE

• Extruder is special designed for PA raw material, so that extrusion output and plastizizing quality are effectivly improved.

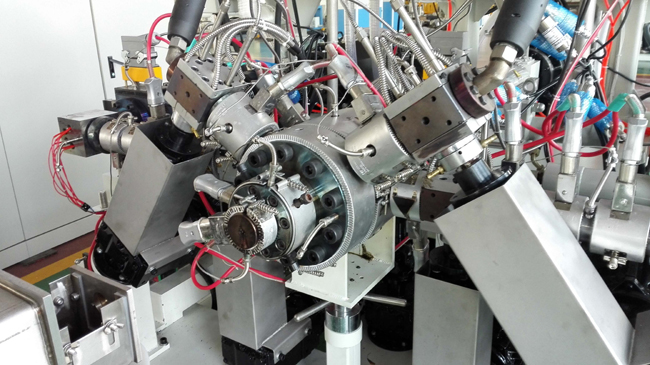

• Multilayer co-extrusion die head adopts special moulds steel, matching up with the unique multi-layer co-extrusion technology and high accuracy CNC processing to creat imcomparable features of high reliablity, usablility and high precision.
• Gravimetric material dosing system, thickness control system, and diameter measuring system are equipped to control produced pipe accuracy.
• SIEMENS PLC system to realize many inteligent operations, such as multi-machine linkage, sperate machine control, fault diagnosis, remote control etc. At same time, advanced on line nonitoring and control technologies, such as servo tracking technology, static digital filter technology etc, are used to ensure plastizing quality and produced pipe accuracy under high speed extrusion.

MORE INFORMATION NEEDED,
PLS CONTACT US RIGHT NOW!!

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
