50m/min Plastic Pipe Production Line , PERT Pipe Making Machine Fully Automatic Winding Machine

Ask Lasest Price
Brand Name :	KAIDE
Model Number :	KDSG-60; KDSS-60; KDSS-75
Certification :	CE; ISO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	200sets per year
Delivery Time :	60 days

Add to Cart

Product Details
Company Profile

50m/min Plastic Pipe Production Line , PERT Pipe Making Machine Fully Automatic Winding Machine

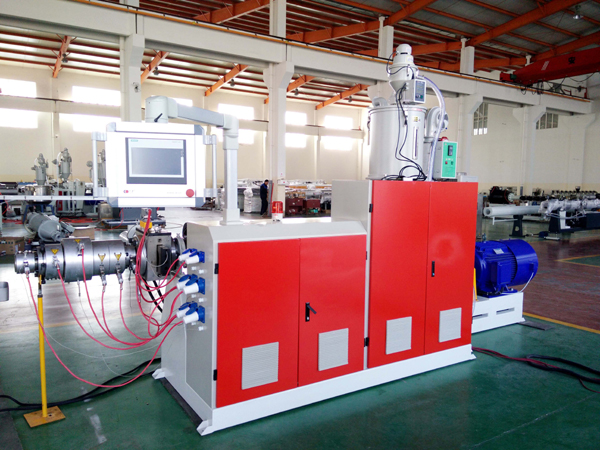

PERT Heating Pipe Production Line/PERT Pipe Extruder Machinery

PERT pipe, produced by the raised temperature resistant polyethylene of raw material, transparent for all, is the most common under floor heating pipe at present.

Pipe inner wall is smooth, it can reduce the blocking phenomena by the residuum in the water, has its own advantages of good flexibility, easy to install and carry, resistance to low temperature and forst crack and service life up to 50 years.

There are mainly three different speed models for PERT pipe extrusion lines. The stable production speed is up to 50m/min.

Technical Data of Pipe Production Line

Line Model	Screw Diameter	L/D	Production Scope	Production Speed	Nominal Power	L×w×h
KDRT-65	ф65mm	33:1	ф16-32mm	15m/min	63KW	27m×1.5m×3m
KDRT-60	ф60mm	36/33:1	ф16-32mm	35m/min	102KW	34m×1.5m×3m
KDRT-75	Ф75mm	36:1	ф16-32mm	60m/min	163KW	58m×2.5m×3m

Features of Pipe Production Line

1) High efficient five section type screw and barrel, to ensure fast plasticizing & dispersion effcct.

2) Gravimetric material feeding system is to control material feeding according to pipe parameter & line production speed, to get high qualified pipe with constant weight per meter. It's also have benefits of shortening start-up time, saving raw material and simplifying operation.

3) Spiral Pressure storage die head effectively overcomes the instantaneous fluctuation of extrusion pressure, realizing high speed pipe extrusion with stable pressure.

4) vacuum and calibrating system is futher optimized based on our previous high speed pipe extrusion line technology; with better structure calibrating and cooling become more effective.

5) Servo type traversing device of winder machine, and with ultrasonic tension control device, to auto adjust widing speed matching with line speed.

6) SIEMENS programable PLC control system with big color touch creen. Having multi-point close-loop control and sysnc system. Remote control system is also applied for after sales technology support.

CONTACT us to get clear video and more details!!
