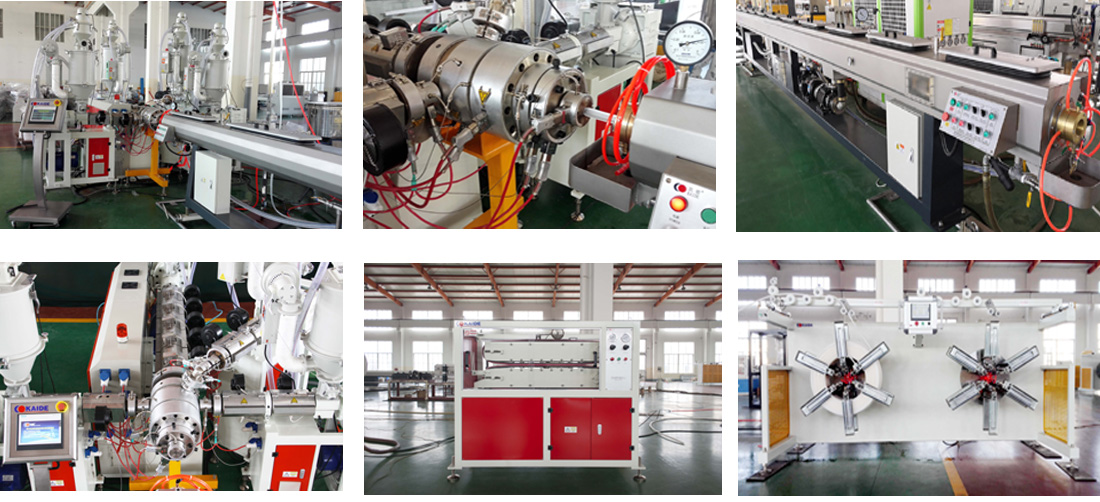

Multilayer EVOH Oxygen Barrier Pipe Production Line

Below pipe extrusion machine is used to produce 5 layer PERT pipes with EVOH oxygen barrier layer. This oxygen barrier pipe can effectively prevent oxygen permeating into the heating system, and thereby eliminate bacteria growth inside the pipes to ensure clean water and better sanitation, as well as protect metal parts in the system from oxidization to ensure a much longer service life.

The pert tubing with oxygen barrier is more flexible and easier to install than other piping materials in radiant heating and hydromic heating systems.

There are several different speed models for your option, the maximum speed is up to 50m/min!

KAIDE factory focus on plastic pipe extrusion only, especially for high speed pipe machine and multi-layer pipe machine. Regarding EVOH pipe machine, the market share is over 85% with plenty practical experience and advanced technology.

TECHNICAL DATA FOR FIVE LAYER:

EVOH PIPE MACHINE DESIGN FEATURES:

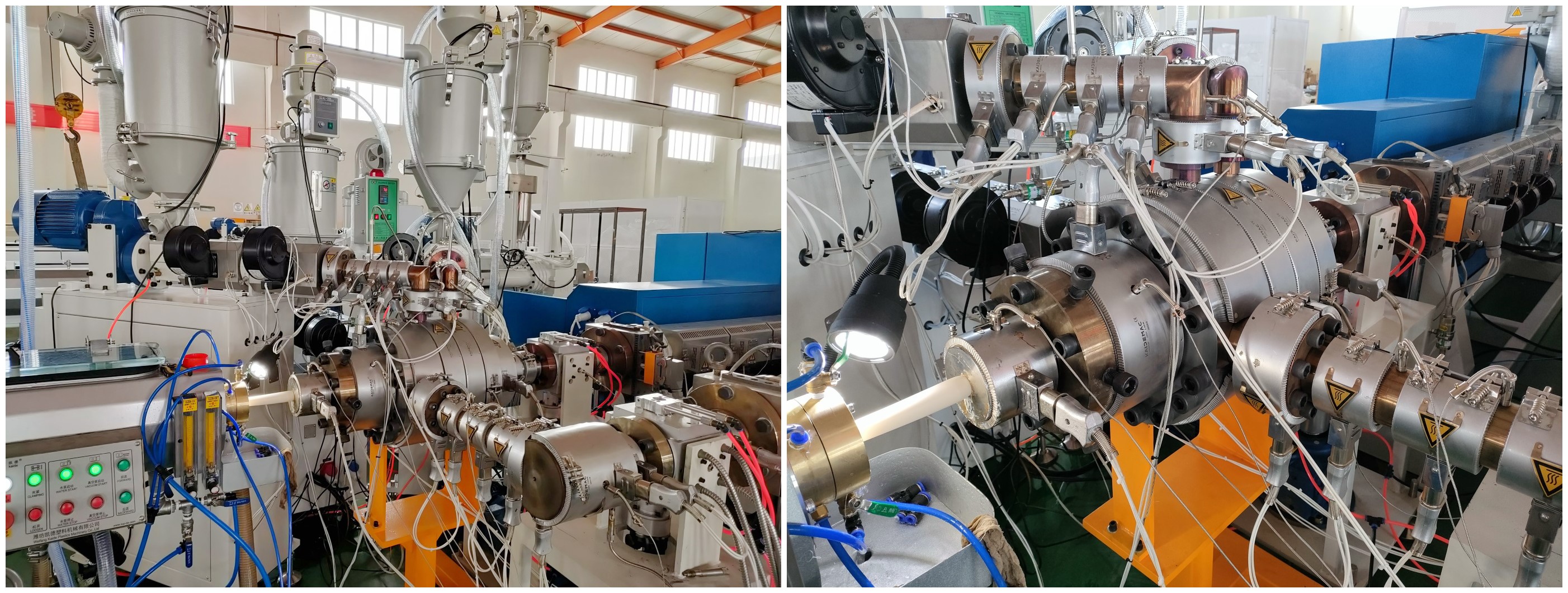

1) Special designed 5 layer co-extrusion die head, to extrude each layer evenly and compond firmly; EVOH extruder screw is special designed as per EVOH ram material features. 5 number of extruders are equipped for production stability. And each layer can be controlled separately.

2)die head is made of high quality mould steel 40Cr, processed by imported CNC machinery. The tipe and die mould surface are chrome-painted, to reduce friction force, increase its hardness and longer its service life, also easy to clean.

3)Vacuum tank & Cooling tank

made by high quality SS304; automatic vacuum control system is equipped as an option, to ensure stable running of the line at high speed.

Vacuum degree will be automatically adjusted by data setting on PLC system.

4)Winding Machine

servo type traversing device, driven by SIEMENS servo motor; better for high coiling speed

with tension control device to auto adjust winding speed, ensure even coil strength

separate SIEMENS PLC control system

Auto stop protection function while sensor pipe end

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
