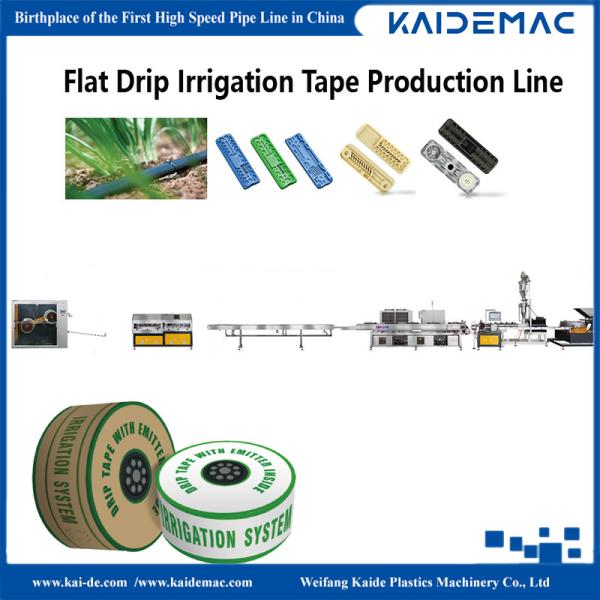

Flat Drip Irrigation Tape Production Line 0.15-0.6mm Speed 180m/min Model

Drip irrigation tape is a flat, thin-walled hose containing pre-spaced dripper emitters, that expands when filled with water. The flat drip emitters are welded into to the tape at certain space as per growing plans needs.

Below are such making machine for this flat drip irrigation tape making.

There are mainly three different models for those drip tape machines, KDPD-I (speed 80m/min), KDPE-II (speed 180m/min) and KDPD-III (speed 250m/min). They are different in production speed and produced drip tape thickness, and what kind of drippers you are using.

TECHINICAL DATA FOR 180m/min Speed model

DRIP IRRIGATION TAPE MACHINE DETAIL INTRODUCTION -- 180m/min speed model

1. Dripper sorting & inserting machine

Dripper identifying speed is more than 1100pcs/min, to ensure dripper supply

Dripper inserting is driven by servo motor, and sync controlled with PLC system

dripper space is direct set on PLC, with min. space 100mm

Auto feeder with dripper lack alarm

2. Extruder & Cross Die Head

Extruder driven by AC motor; with ABB converter, Schneider electric elements

SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

3. Vacuum tank & Cooling tank

made by high quality SS304; high quality vacuum pump & water pump

special design calibrator for drip tape making

air bubble detecting and alarm system; tape break down stop function; tape anti-rotation system etc

4. Perforating Machine & Tractor

driven by servo motor and servo controller, with high precision punching degree

Laser sentor to auto tracking dripper positon, and with image system to check punching hole condition

Intelligent control system with remote control system

5. Winding Machine

servo type traversing device, driven by SIEMENS servo motor

with tension control device to auto adjust winding speed

Auto tape cutting, and auto new coil changing , with protection

separate SIEMENS PLC control system

6. SIEMENS PLC Control System

① Precise synchronous control of main machine and the auxiliary machine; Programmable and settable alarming and protection function at all levels.

②Equipped with remote control system for machine fault analysis and problem solving;

③ Programmable and settable alarming and protection function at all levels.

④Rotary support frame for convenient operation;
