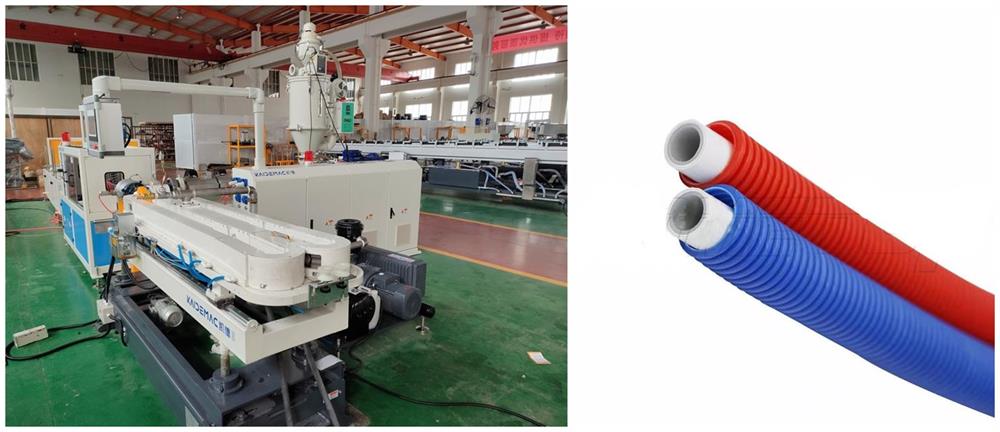

Below pipe production line is used to produce single wall corrugated sheath pipe, inserting PEX-AL-PEX pipe or other plastic pipes inside. It's also called pipe in pipe.
Pipe in pipe is an excellent system for hot and cold water. It is completely impervious to internal and external corrosion and prevents the build-up of stone sediments.

Basic Technical Parameters

The configurations of Pipe Production line

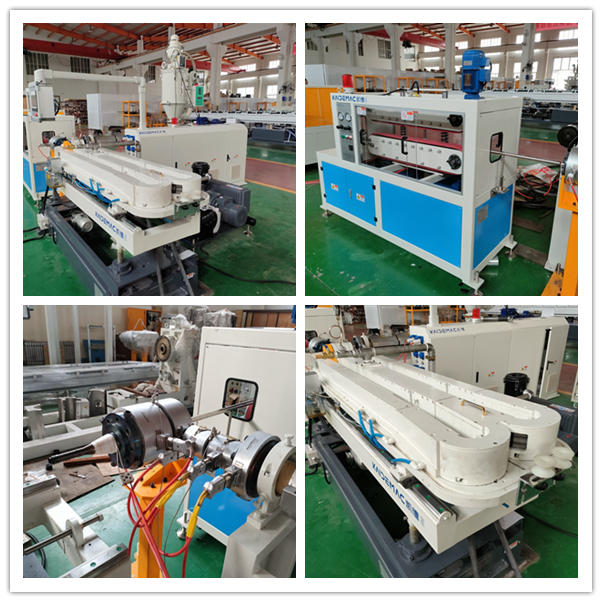

Design feature for Pipe Production Line

1) Extrusion die head structure is special design for those type pipe in pipe making, to insert the inner PEX-AL-PEX pipe inside.
2) The corrugated pipe forming device adopt vacuum forming type. The forming model is precsion, and easy to change different sizes.
3)Adopting SIEMENS PLC control system to control the whole line, like extruder start/stop, vacuum start/stop, Haul-off speed sync control and start/stop;
and also with safety protection alarm and stop function.

​

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
