High Speed 20-63mm HDPE Pipe Production Line/HDPE Pipe Extrusion Line

KAIDE factory has focused on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe line and multi-layer pipe line.

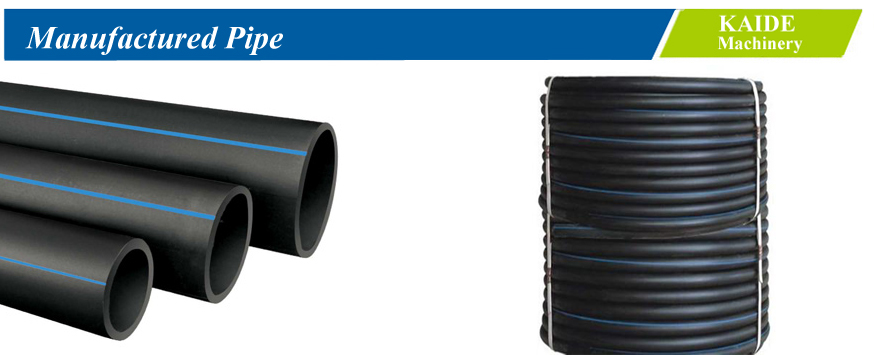

This HDPE pipe line are special designed for small diameter HDPE pipes, from 20mm to 63mm, in order to get a high speed of production to increase the production efficiency, reduce production cost, such as labor, electric and water consumption etc. The prodution line speed can reach to 40m/min to 50m/min.

Features of Pipe Production Line:

●Special designed high efficient five-section type screw and barrel, ensuring the rapid plasticizing & dispersion effect, and realizing high speed production.

●Spiral pressure-storage die head, ensuring the stability of high speed extrusion and produced pipe quality.

●High precise control system of pipe weight per meter is applied in this line. It is used for measuring & calculating and precise control of pipe weight per meter and its extrusion output, to realize the constancy of pipe weight and line running according to set parameters. The application of this system can shorten the start-up time and improve the produced pipe quality, and save raw material.

●ISIEMENS PLC programmable computer control system, which could ensure the whole line high-speed synchronous control and its stable & reliable running.

Technical Data of Pipe Production Line:

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
