Round Drip Irrigation Pipe Production Line
The drip irrigation pipe is widely used in water saving irrigation
field, such as vegetables, flowers and trees. This line can produce
this kind of inline round drip irrigation pipe continuously with
high speed, steady thickness distribution, high dripper inserting
frequency and high precise hole punching.
Main Features of the line:
1)The die head mould is specially designed; the precise inlaying
unit, haul-off unit, auto punching unit are provided with the
necessary elements for high speed plastic pipe production.

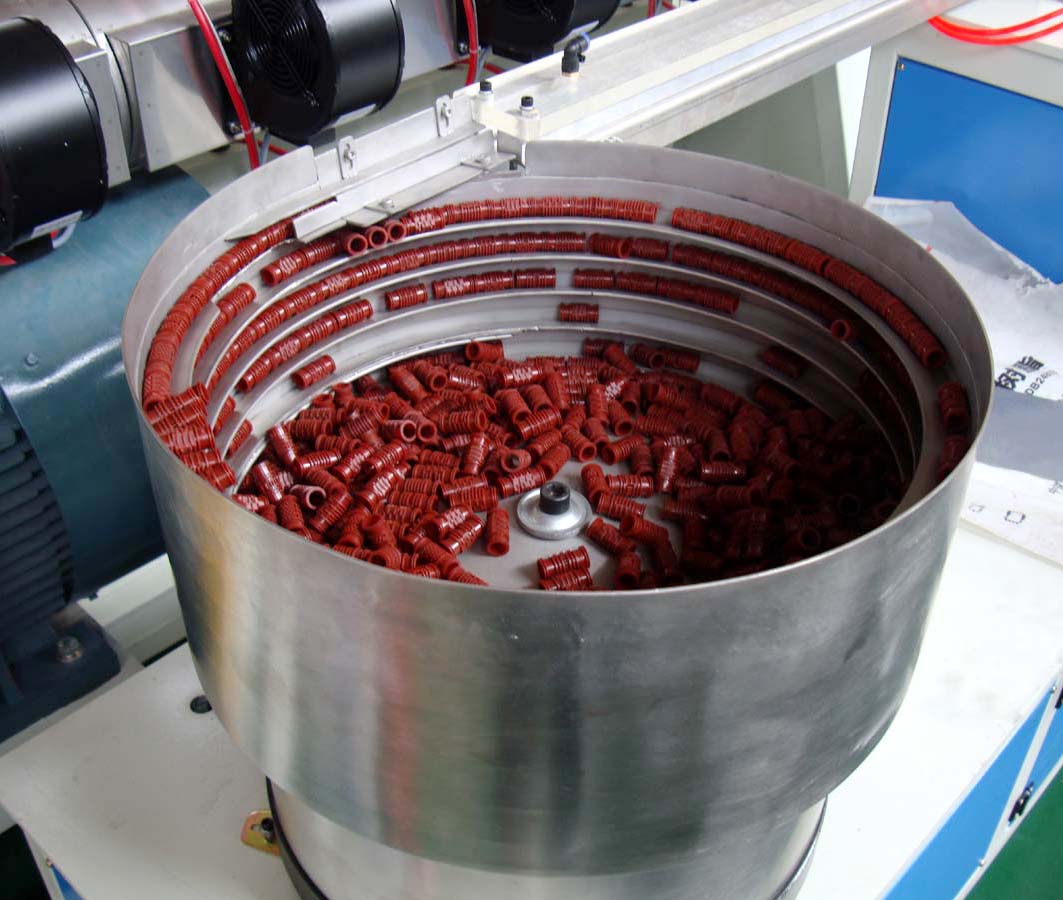

2)This line adopted centrifugal screening device for drippers
screening & sequence, this device has the advantages, such as, high
precision screening, rapid sequence and high dripper identifying
speed, which ensure the precise dripper supply during high speed
production.
3)The dripper is inlaid by high speed push-rod inlaying, and
dripper spacing can be adjusted automatically according to
production requirements, which ensures the dripper spacing accuracy
in different line speed.
4)Adopted mechanical punching mode, automatically tracking the pipe
production speed, guaranteed the accuracy of punching position.
5)The synchronous control is realized from dripper feeding,
screening & sequence, conveying & inlaid, haul-off, to punching and
coiling, which ensures the precise control and stable running of
high speed production.
6)The manufactured pipe is widely applied in water-saving
irrigation fields, such as, greenhouse, garden afforestation, farm
planting, hills irrigation etc
Technical Data
Item | Technical Parameters |
Pipe diameter | 12mm, 16mm, 20mm |
Pipe thickness | 0.6-1.0mm |
Dripper distance | 200mm-1000mm or according to user’s requirements |
Production speed | 20m/min; 60m/min |
Extruder model | SJ-45/SJ-80 |
Dripper type | Inline round dripper |
Dripper flow | 2-4L/H |
