5 Layer PEX EVOH Oxygen Barrier Pipe Production Line

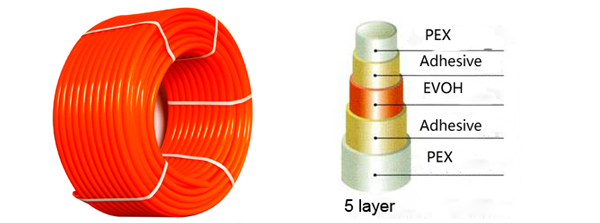

Below pipe extrusion machine is used to produce 5 layer PEX pipes with EVOH oxygen barrier layer in the middle. Comparred with 3 layer structure, five layer design ensure that EVOH oxygen barrier is protected and remains intact, safeguarding your radiant heating system.

Because of cross-linking feature of PEXb material, the technology of 5 layer co-extrusion of PEXB/EVOH is little complex and hard to extrude. KAIDE company has successfully developed this PEXb/EVOH pipe making, based on its years practical expereice on EVOH pipe making and PEXb pipe making.

TECHNICAL DATA

EVOH PIPE MACHINE DETAIL INTRODUCTION

Extruders

• 5 extruders are used for each layer extrusion, and screw special designed as per PEXb material cross-linking features.
• ABB inverter; Schneider electric elements
• SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

Co-extrusion Die Head

• Special designed 5 layer co-extrusion die head, to extrude each layer evenly and compond firmly;
• die head is made of high quality mould steel 40Cr, which is processed by imported CNC machinery.

Vacuum tank & Cooling tank

• made by high quality SS304; high quality vacuum pump & water pump
• special design calibrator for EVOH pipe making

Winding Machine

• servo type traversing device, driven by SIEMENS servo motor
• with tension control device to auto adjust winding speed
• separate SIEMENS PLC control system
• Coil length free setting;
• Auto stop protection function while sensor pipe end

MORE INFORMATION NEEDED, PLS CONTACT US RIGHT NOW!!

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
