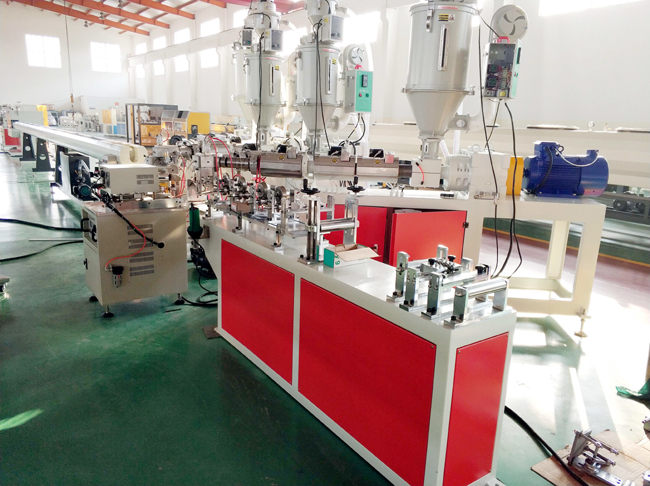

Ultrasonic Overlap Welding PERT-AL-PERR Pipe Production Line
Multi-layer PERT Aluminum Pipe Making Machine

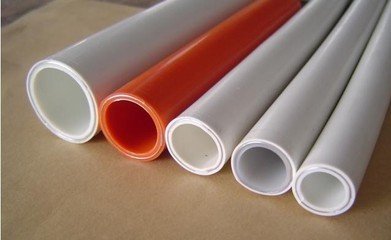

Below plastic pipe line is used to produce overlap welding
typePERT-AL-PERT pipes, with diameter range 16-32mm.
Four extruders are sued to extruder each layer with multilayer
co-extrusion technology.
Pipe Making Process:
Aluminum pipe making (round shape forming)→ Inner PERT and Adhesive layer Co-Extrusion→Al pipe Welding→Outer Adhesive and PERT Layer co-extrusion→Cooling tank → Haul-off machine→Cutting Machine→Winding machine
Technical Data of Pipe Production Line:
| Line Model | Extruder Model | L/D | Production Scope | Production Speed | Nominal Power |
| KDPAP-45 | SJ-45/45/30 | 30/25/25:1 | Ф16-32mm | 8-12m/min | 93KW |
Main Feature of the Pipe Production Line:
1) This high efficient extruder is special designed by our company
with independent intellectual property rights. The necessary
technologies of high speed & stable production of composite pipes
have been privatized in the die head mold, calibrating& cooling
system, Haul-off system and cutting system.
2) The Aluminum pipe is formed by ultrasonic overlap welding. It
uses high quality and well-known brand welder, with even welding
seam and good quality.
3) The technology has been further developed based on original
production machine technology. The Aluminum pipe forming molds and
co-extrusion die head molds have been optimized and manufactured by
imported high precise CNC machine, which have greatly increased the
pipe forming accuracy and production speed.
4) It adopts original imported new generation PLC control system
with full color screen, which ensures the high speed synchronous
control and reliable operating of the whole production line.
CONTACT us now for more information!!
