Double Wall Pertol Pipe Production Line

Multilayer Petrol Pipe Making Machine

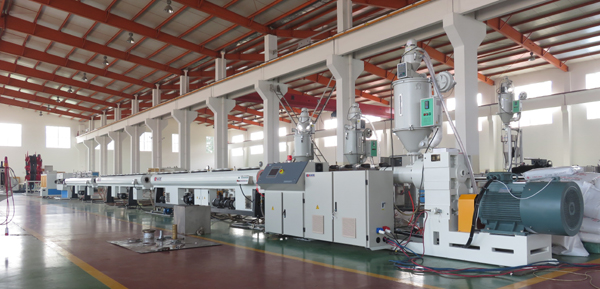

Below pipe extrusion machine is used to produce double wall petrol pipe system, primary pipe and secondary containment pipe.

Firstly one pipe production line is to extrude that primary pipe, with a three layer sturcture (EVOH-ADHESIVE+HDPE). Three extruders and one three layer coextrusion die head are equipped.

The second pipe production line is to extruder that secondary containment pipe.

TECHNICAL DATA

Features of Pipe Production Line

1) 3 layer HDPE/EVOH pipe machine and 2 layer PE co-extrusion machine are combined together for this speical oil pipe making, based on the technology accumulation of thousand of multi-layer pipe extrusion technology. It have achieve the sync control and stable reliable performance.

2) High efficiency extruder with special designed five section screw & barrel ensures the rapid material dispersion and stable extrusion at high speed.

3) Unique three layer/two layer co-extrusion technology makes melt material maintain a stable flow to obtain good quality; and more innovative technology is adopted to reduce mold cavity pressure, to reduce that machine energy consumption.

4) Primary pipe extruder, secondary containment pipe extruder and haul-off machine are sync controlled by PLC system, achieving that zero-erro communcation between machines. One touch type speed changing function eliminate many operating obstacles, which has greatly reduced that unqualified pipe rate compared with other similar products.

4) SIEMENS PLC system to realize many intelligent operations, such as multi-machine linkage, separate machine control, fault diagnosis, remote control etc. At same time, advanced on line monitoring and control technologies, such as servo tracking technology, static digital filter technology, etc., are used to ensure plasticizing quality and produced pipe accuracy under high speed extrusion.

MORE INFORMATION NEEDED,

PLS CONTACT US RIGHT NOW!!

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
