Drip Irrigation Pipe Production Line

Cylindrical Dripline Extrusion Machine

PE Irrigation Lateral Pipe Making Machine

There are mainly three different speed models for this drip irrigation pipe machines. One is 20m/min speed with lower investment cost; second is 45m/min with better technology of servo typer dripper inserting and hole perforating; Third is 100m/min higher speed with fully auto winding machine with package device also.

TECHINICAL DATA

By few machine cofiguration, normal HDPE pipes can be produced with one same line;

And also two layer or 3 three layer structure drip pipe can be produced, by co-extrusion technology.

DRIP IRRIGATION PIPE MACHINE DETAIL INTRODUCTION -- 45m/min speed model

1. Dripper sorting & inserting machine

• driven by servo motor and controlled by PLC system
• dripper space is adjustable, directly set on PLC
• dripper sorting disc made of high quality steel ;
• Auto feeder with dripper lack alarm

2. Extruder & Cross Die Head

• Extruder driven by AC motor; with ABB converter, Schneider electric elements
• SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed
• Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.

3. Vacuum tank & Cooling tank

• made by high quality SS304
• high quality vacuum pump & water pump
• special design calibrator for drip pipe making

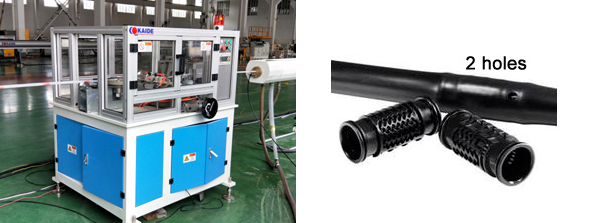

4. Perforating Machine

• drive by servo motor and servo controller, with high precision punching degree
• auto tracking dripper positon
• standard 2 holes punching

5. Haul-off Machine

• ABB converter
• Wear-resisting belt; multi-group rollers pneumatic clamping with force adustable
• Speed sync with extruder

6. Winding Machine

• servo type traversing device, driven by SIEMENS servo motor
• with tension control device to auto adjust winding speed
• separate SIEMENS PLC control system
• Coil length free setting;
• Auto stop protection function while sensor pipe end
• Laser printing coil size inforamtion, for operation convenience

MORE INFORMATION NEEDED,

PLS CONTACT US RIGHT NOW!!

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
