Dual Function 20-63mm HDPE Pipe & Drip Irrigation Pipe Making Machine

This line is special designed for DUAL FUNCTION, which can produce 20-63mm HDPE pipe and 16-20mm drip irrigation pipes with one same line.

If you already have one HDPE pipe machine, it can be upgraded to produce drip irrigation pipe also, by adding few machinery part for drip pipe making.

TECHINICAL DATA OF DRIP PIPE MACHINE

DRIP IRRIGATION PIPE MACHINE DETAIL INTRODUCTION -- DUAL FUNCTION

1. Main Extruder & Dripper Inserting Machine

• Main Extruder with control panel; ABB inverter, Schneider electric elements, and Omron gauges
• Dripper sorting machine is parallel arranged to save working space

2. Cross Die Head for HDPE and Drip Pipe

• separate die head for 20-63mm HDPE pipe making;
• die head for 16-20mm drip pipe making

3. Vacuum tank & Cooling tank

• made by high quality SS304; size big for 16-63mm pipe cooling
• high quality vacuum pump & water pump
• special design calibrator for drip pipe making

4. Perforating Machine

• mechanical hole punching, by air driller
• auto tracking dripper positon
• standard 2 holes punching; 4 holes avaiable as required

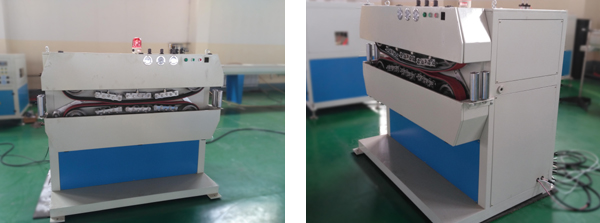

5. Haul-off Machine

• special structre trator, which is suitable for drip pipe haul-off and HDPE hard pipe also

6. Winding Machine

• Driven by torque motor; easy to operate
• Laser printing coil size inforamtion, for operation convenience

MORE INFORMATION NEEDED,

PLS CONTACT US RIGHT NOW!!

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
