PPR Pipe Extrusion Machine high Speed 30m/min

Ask Lasest Price
Brand Name :	KAIDE
Model Number :	PPR
Certification :	CE, ISO
Price :	$50000-80000USD
Payment Terms :	TT; L/C
Supply Ability :	500 sets per year
Delivery Time :	60days

Add to Cart

Product Details
Company Profile

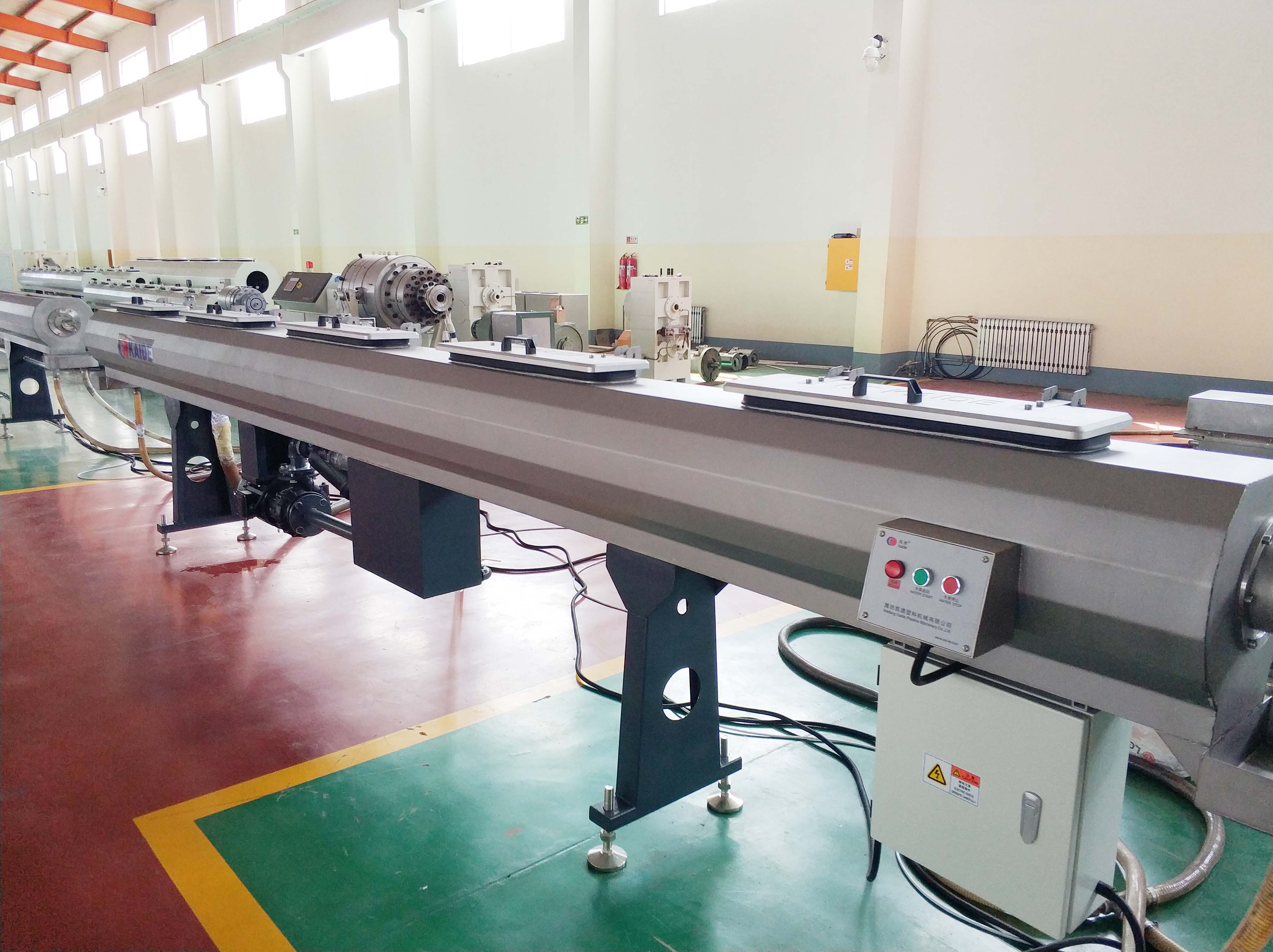

PPR Pipe Extrusion Machine high Speed 30m/min

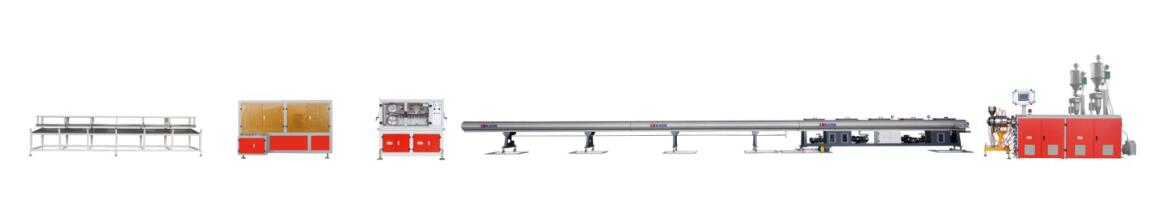

PPR Pipe Making Machine/3 layer PPR Glassfiber Pipe Making Machine

Features

1) Independently developed high efficiency PPR Extruder and Glassfiber Extruder are applied, especially in the Glassfiber Extruder that is specially designed according to glassfiber feature, with advantages of high wear resistance and corrosion resistance, effectively ensuring the stable extrusion.

2) The adjustable co-extrusion die head, our patent product, can composite multi-layer evenly and rapidly and get optimal thickness of each layer quickly without adjusting the extruder rotating speed. Thus, the design can reduce the dependence on operator’s skill during the production process.

3) The combined cutting system can guarantee the rapid and dustless cutting of different diameters’ pipes during the high speed production. The control technology, which is self-developed according to pipe cutting characters, ensures higher accuracy of cutting during the high speed production and eliminates the problems of printing being not synchronous with cutting, uneven pipes’ length, etc.

4) It can be upgrade by machine configuration renovation to produce high speed three layers or single layer HDPE pipe.

Technical Date

Line Model	Screw Diameter	L/D	Production Scope	Output(kg/h)	Nominal Power	L×w×h
KDPP-65	ф65mm	33:1	ф20-63mm	115	70KW	24×2×3
KDPP-60	Ф60mm	36:1	ф20-110mm	230	102KW	36×2×3
KDPP-75	Ф75mm	36:1	ф20-110mm	350	163KW	53×2×3
KDGF-65	ф65/50mm	33:1	ф20-63mm	150	91KW	24×2.5×3
KDGF-60	ф60/65mm	36/33:1	ф20-110mm	340	157KW	36×2.5×3
KDGF-75	Ф75/60mm	36:1	ф20-110mm	550	248KW	45×2.5×3

CONTACT us to get clear video and more details!!
