High Speed PE-RT Pipe Production Line/PERT Pipe Extrusion Line

PERT pipe, produced by the raised temperature resistant polyethylene of raw material, transparent for all, is the moset common under floor heating pipe at present.

Pipe inner wall is smooth, it can reduce the blocking phenomena by the residuum in the water, has its own advantages of good flexibility, easy to install and carry, resistance to low temperature and frost crack and service lif up to 50 years.

This pipe extrusion line is mainly used for the production of PERT pipe at high speed, which stable speed can reach to more than 40m/min.

Technical Data of Pipe Production Line:

Features of Pipe Production Line:

◆ High efficient five section type screw and barrel, to ensure fast plasticizing & dispersion effect.

◆ Gravimetric material feeding system is to control material feeding according to pipe parameter & line production speed, to get high qualified pipe with constant weight per meter. It’s also have other benefits, such as shortening start-up time, saving raw material, simplifying operation.

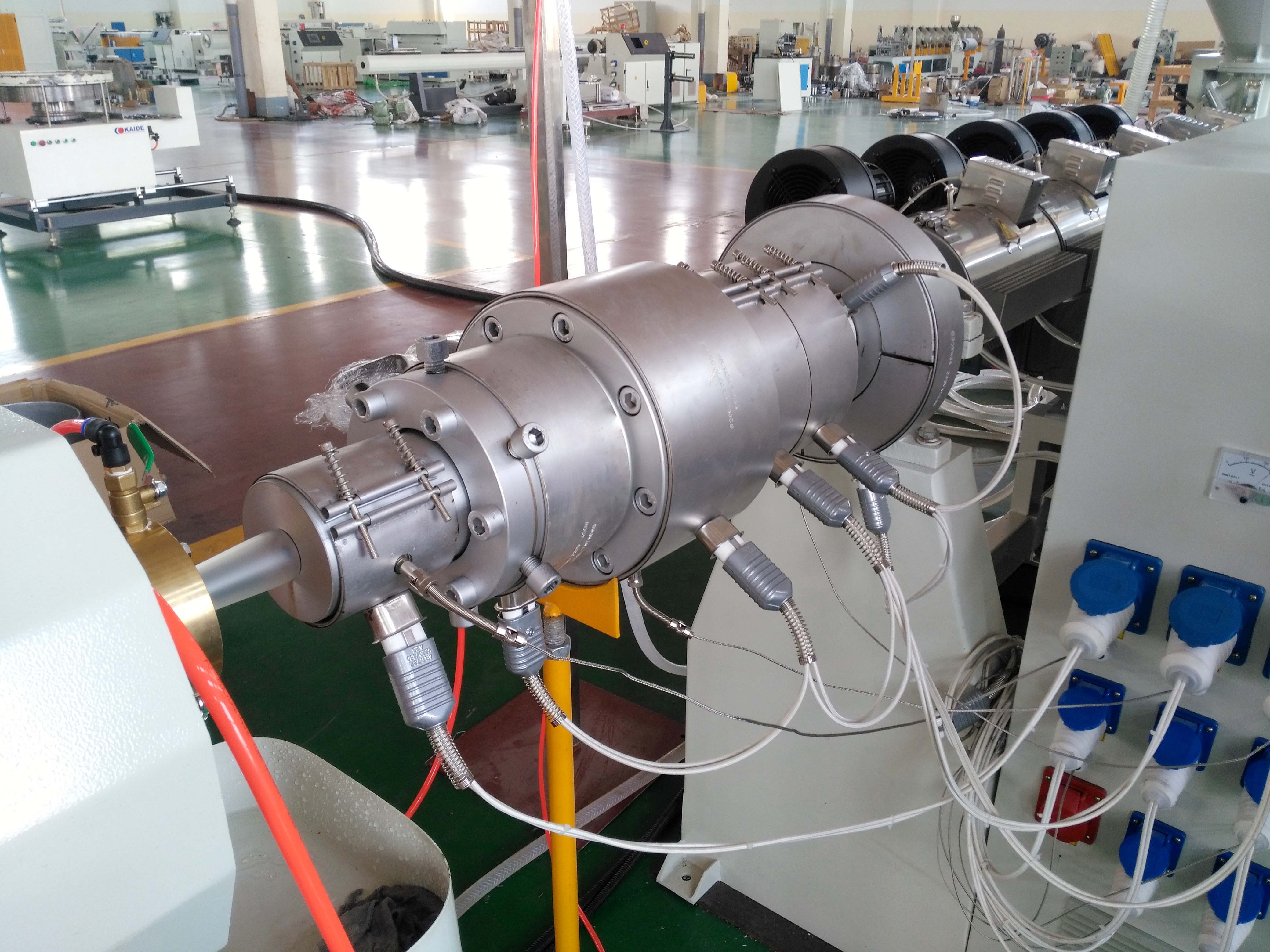

◆ Spiral pressure-storage die head effectively overcomes the instantaneous fluctuation of extrusion pressure, realizing high speed pipe extrusion with stable pressure.

◆ Vacuum and calibrating system is further optimized based on our previous high speed pipe extrusion line technology; with better structure the pipe calibrating and cooling has become more effective.

◆ Fully automatic pipe winder; The whole process from reel changing to pipe cutting and winding is automatic. SIMENS PLC controlled separately and can be synced with line production speed.

◆ SIMENS programmable PLC control with big color touch screen. Having multi-point close-loop control and synchronous system, which ensure the easy and reliable operation of the line.

Weifang Kaide Plastics Machinery Co., Ltd. was established in 2001, focusing on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe prodution line and multi-layer composite pipe line.

Our main pipe extrusion lines are:

High Speed PERT/HDPE Pipe Extrusion Line

High Speed PPR-FG-PPR Pipe Extrusion Line

Inline Flat/Round type Drip Irrigation Pipe Extrusion Line

PEX-AL-PEX/PPPR-AL-PPR/PERT-AL-PERT Pipe Extrusion Line

EVOH Oxygen Barrier Pipe Extrusion Line

Cross-linking PEX Pipe Extrusion Line

PVC reinforeced Hose Extrusion Line

Single Wall Corrugated Pipe Extrusion Line etc.

We have passed ISO9001 International quality system certification, CE certification, American UL certification.

And was awarded as Advanced Enterprise, National outerstanding Engerprises, Technology Contributions Prizes, High Technology Enterprises, Creditable Enterprises,etc .

With advanced technology, excellent product quality and better service, we have gained a larger market share for high-end plastic pipe lines in the domestic market, and exported to Italy, Poland, German， Finland,  Russia, Ukraine, Iran, Algeria, South Korea, Kyrgyzstan and other countries and area all over the world, and successfully entered in to Europe and American market.

Any inquiry from you is highly appreciated. Sincerely hope those words can lead us to a good cooperative relationship.
